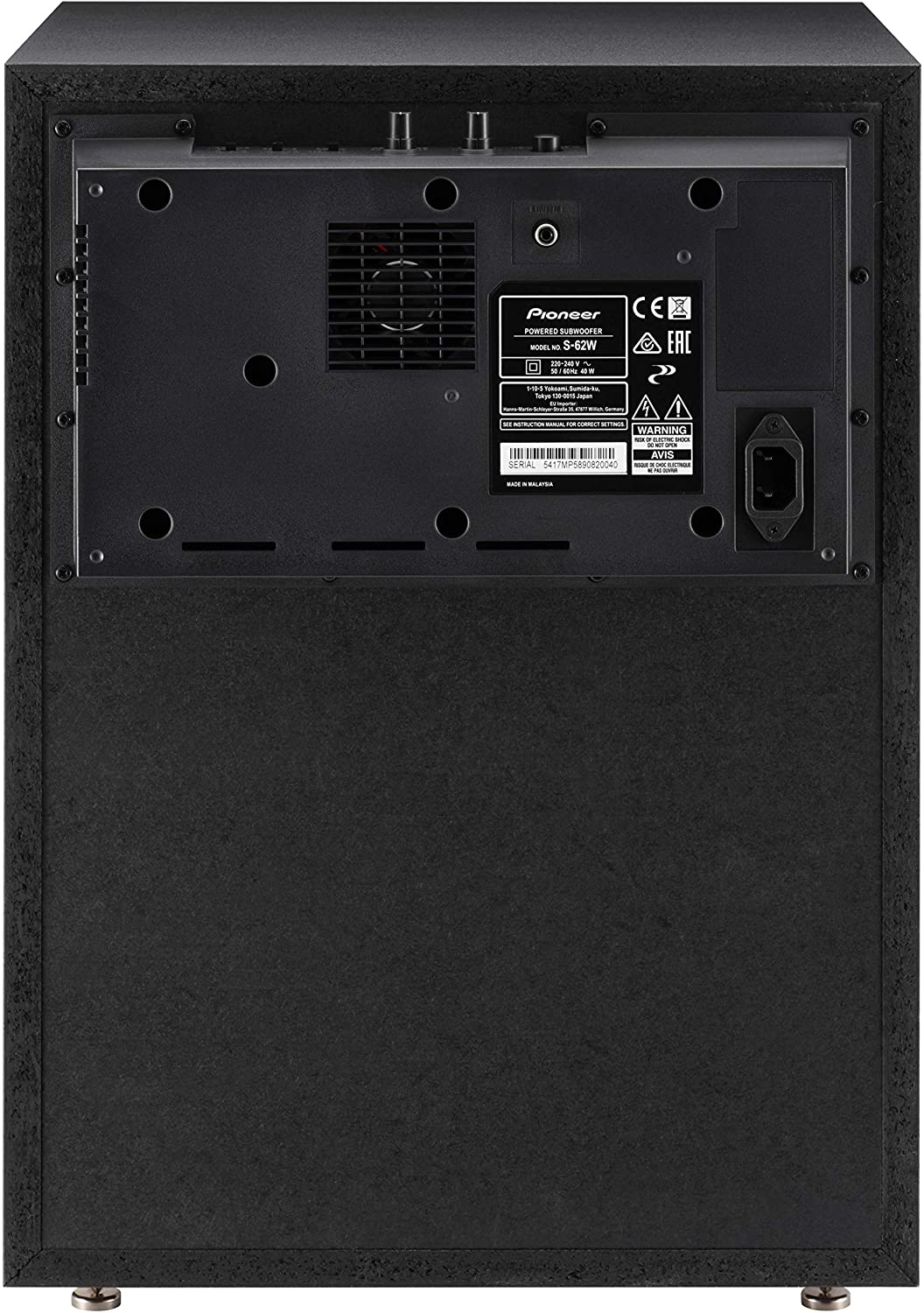

Add the Pioneer S-62W subwoofer to your speaker setup, and you will be surprised by the difference it makes, and be even more impressed by the performing piece. Designed with large 30 cm woofer, built-in Class D amplifier, and Pioneers Phase Control technology, the S-62W reproduces the low frequency sound with precise timing andvolume, just as intended by the creator. The faithful delivery of clear and high-speed low frequencies gives new life to the movie sound track or music performance, conveying the realism and even the ambience from the playing content.
Audio Features
- Bass-Reflex Floor Type
- Maximum Effective Output Power (IEC): 200 W
- Original Power Supply Unit with Low Noise and High Power
- Built-in Class D Amplifier Featuring High-Efficiency, Wideband,and Highly-Precise Feedback Design
- Large 30 cm High Linearity Cone Woofer Unit Delivers ClearSound with Low Distortion
- Phase Control
Specifications
- Frequency Response: 23-2000 Hz
- Crossover Frequencies (Selectable): 50-200 Hz
- Power Consumption: 40 W
- Power Consumption during Standby: 0.5 W
- Power Requirement: 220-240 V, 50/60 Hz
Dimensions & Weight
- Dimensions (W x H x D): 360 x 490 x 387.5 mm
- Weight: 13.3 kg
There is currently no User Manual available.
| Description | |
| S-62W Datasheet | Download |
To request a Firmware file download or further Firmware information
Audio Features
- Bass-Reflex Floor Type
- Maximum Effective Output Power (IEC): 200 W
- Original Power Supply Unit with Low Noise and High Power
- Built-in Class D Amplifier Featuring High-Efficiency, Wideband,and Highly-Precise Feedback Design
- Large 30 cm High Linearity Cone Woofer Unit Delivers ClearSound with Low Distortion
- Phase Control
Specifications
- Frequency Response: 23-2000 Hz
- Crossover Frequencies (Selectable): 50-200 Hz
- Power Consumption: 40 W
- Power Consumption during Standby: 0.5 W
- Power Requirement: 220-240 V, 50/60 Hz
Dimensions & Weight
- Dimensions (W x H x D): 360 x 490 x 387.5 mm
- Weight: 13.3 kg
